The AI561 is an analog input module for the AC500-eCo familySupply voltage: 24V DCPower Consumption: The current drawn from a 24V DC power supply is approximately 10mASurge voltage: 35V DC max for 0.5sMaximum power consumption in the module: 2.7WMounting position: horizontal or verticalCooling method: natural convection cooling, which cannot be obstructed by cable ducts or other components in the control cabinetNumber and type of input channels: 4 individually configurable voltage or current input channelsChannel grouping: 1 group of 4 channels eachResolution:Unipolar voltage: 0V...+5V, 0V... 12 bits at +10VCurrent: 0mA... 20mA、4mA... 12 bits at 20mABipolar voltage: -2.5V...+2.5V, -5V... 12 bits at +5V (signed)Input Type: DifferentialCommon-mode input range: The signal voltage plus the common-mode voltage must be within ±12VChannel input resistance: >1MΩ for voltage input, about 250Ω for current inputAnalog Value Conversion Error:Voltage: ±0.5% of full scale typicalCurrent (0mA... 20mA）：±0.5%Current (4mA... 20mA）：±0.7%Maximum: at 0°C... +60°C or ±2% of full scale with EMIInput filter time constant: 300μs for both voltage and current inputsAnalog-to-digital conversion time: 500μs typical per channelUnused Input: Open-circuitable and should be configured as "Unused"Input data length: 8 bytesOvervoltage protection: Voltage input only, up to 30V DCMaximum cable length (conductor cross-sectional area > 0.14mm²): 10m for unshielded wires and 100m for shielded wiresDimensions: Length 135mm, width 34mm, height 74mmWeight: Net weight 0.12kg, gross weight 0.16kgDegree of protection: IP20 housingOperating temperature: 0°C... +60°CStorage temperature: -40°C... +70°C

The ABB AI562 is an analog input module of the AC500-eCo series for RTD temperature measurementSupply voltage: 24V DC, permissible voltage range - 15% to + 20%.Power Consumption: The current drawn from a 24V DC supply is approximately 5mA, with an inrush current of 0.05A²s at start-up and a maximum ripple of 5%.Reverse Voltage Protection: Yes.Maximum power consumption in the module: 1.1W.Mounting position: horizontal or vertical, operating temperature range from 0°C to +60°C when installed horizontally, reduced output load to 50% per bank when installed vertically, and operating temperature range from 0°C to +40°C.Cooling method: natural convection cooling, which cannot be obstructed by cable ducts or other components in the control cabinet.Number and type of input channels: 2 configurable RTD channels.Channel grouping: 1 group of 2 channels each.Resolution: RTD of 0.1°C/0.1°F, resistance of 15 bits + sign bits.Input Type: Modular Ground Reference RTD for 2-Wire and 3-Wire RTD Temperature Detectors.Input range: support PT100, PT1000, NI100, NI1000, 150Ω, 300Ω, etc.Module update time: less than 1s for all channels.Channel input resistance: >100kΩ.Input filter attenuation: -3dB at 3.6kHz.Analog Value Conversion Error: Typical values depend on the RTD and are up to ±0.6% of full scale at 25°C and up to ±2% of full scale at 0°C to 60°C or electromagnetic interference.A/D conversion time: 140ms typical per channel.Unused Input: Openable and should be configured as Unused.Input data length: 4 bytes.Sensor internal power consumption: 1mW max.Interference suppression: can be carried out upon request.Maximum input voltage: 30V DC at the detection end and 5V DC at the source side.Basic error (resistance): 0.1% of full scale.Repeatability: 0.05% of full scale.Overvoltage Protection: Yes, up to 30V DC.Wire loop resistance: 800hPa/

Number of input points: 4 analog input channels.Input Type: Configurable as a voltage or current input.Input Range:Voltages: -10V to +10V, -5V to +5V, 0V to +10V.Current: -20mA to +20mA, -10mA to +10mA, 0mA to +20mA, 4mA to 20mA.Resolution:Voltage input: 14 bits with signed bits (bipolar) or 15 bits (unipolar).Current input: 14 bits with signed bits (bipolar) or 15 bits (unipolar).Precision:Typical: Approximately ±0.1% of full scale at voltage input; At current input, it is approximately ±0.1% of full scale.Maximum: Approximately ±0.2% of full scale at voltage or current input.Supply voltage: 24V DC, allowable voltage range from 20.4V to 28.8V.Power Consumption: The current drawn from a 24V DC power supply is approximately 10mAOperating temperature: 0°C to +60°C.Storage temperature: -40°C to +70°C.Relative humidity: 0 to 9 Degree of protection: IP20.Channel isolation: There is a certain electrical isolation between channels to reduce interference between channels.Anti-interference ability: It has a certain anti-interference ability to electromagnetic interference to ensure stable operation in industrial environments.Input Signal Conditioning: With input signal conditioning, the input analog signal can be properly conditioned to meet the needs of measurement and control.5% RH, non-condensing.

Number of input points: 4 analog input channels.Input Type: Configurable as a voltage or current input.Input Range:Voltages: -10V to +10V, -5V to +5V, 0V to +10V.Current: -20mA to +20mA, -10mA to +10mA, 0mA to +20mA, 4mA to 20mA.Resolution:Voltage input: 14 bits with signed bits (bipolar) or 15 bits (unipolar).Current input: 14 bits with signed bits (bipolar) or 15 bits (unipolar).Precision:Typical: Approximately ±0.1% of full scale at voltage input; At current input, it is approximately ±0.1% of full scale.Maximum: Approximately ±0.2% of full scale at voltage or current input.Supply voltage: 24V DC, allowable voltage range from 20.4V to 28.8V.Power Consumption: The current drawn from a 24V DC power supply is approximately 10mAOperating temperature: 0°C to +60°C.Storage temperature: -40°C to +70°C.Relative humidity: 0 to 9 Degree of protection: IP20.Channel isolation: There is a certain electrical isolation between channels to reduce interference between channels.Anti-interference ability: It has a certain anti-interference ability to electromagnetic interference to ensure stable operation in industrial environments.Input Signal Conditioning: With input signal conditioning, the input analog signal can be properly conditioned to meet the needs of measurement and control.5% RH, non-condensing.

Analog I/O modulesAnalog inputs: 4 channels, signal type is voltage (U), current (I)Analog outputs: 2 channels, signal type is voltage (U), current (I)Resolution: 12-bitConnection Type: PluggableDegree of protection: IP20Operating ambient temperature: 0°C to +60°CStorage ambient temperature: -40°C to +70°C

The ABB DC562 is the S500-eCo digital input/output moduleNumber and type of input points: 16 configurable digital input points, available as source or drain inputs, with input voltage type DC.Input Current: 5mA typical.Maximum input voltage: 0-30V.Delay time: 8ms typical.Number and type of output points: 16 transistor output points.Output voltage type: DC.Output current: 0.5A max per point, 4A max for all channels combined.Output voltage range: 20.4-28.8V.Power supply voltage: 20.4-28.8V DC.Power Consumption: The current drawn from a 24V DC power supply is approximately 10mA.Connection Type: Pluggable.Degree of protection: IP20.

Number of input points: 8 digital input channels, i.e. 8DI15.Input voltage: 24VDCWiring: PCB terminal blocks with 9-position screw wiring for easy electrical connection5Operating Temperature: Typically within the ambient temperature range of -20°C to 60°C, some special models can accommodate a wider temperature range.Humidity: Relative humidity between 5% and 95%, non-condensing.Protection level: Generally in line with the IP20 protection level standard, it can prevent dust and foreign objects from entering to a certain extent.

The DI562 is ABB's S500-eCo series of digital input modulesNumber of input points: 16 digital input channels3.Input voltage type: AC/DC.Rated input voltage: 24V DC35.Input current: Approximately 2mA per input, with a maximum input current of 5mA.Input impedance: 10kΩ.Maximum input voltage: 0V to 30V.Latency: 8 to 8ms.Response time:

The DI571 is a digital input module with 8 digital input channels and input voltages ranging from 100V AC to 240V ACIsolation characteristics: Galvanic isolation between the channels and the rest of the module, the number of isolation groups is 8, 1 channel per groupPower Consumption: The current consumption from a 24V DC power supply is approximately 10mWeight: Approx. 135g1.Installation position: It can be installed horizontally or vertically, and the natural convection cooling cannot be obstructed by the cable tray or other components in the control cabinet.Input Voltage Range: 0V AC to 264V AC (47Hz to 63Hz)Input current: 6mA (159V AC, 50Hz) per channel at 25°C typical; >7mA（159V AC，60Hz）Input type: Type 1 according to EN 61131-2Signal range: Signal 0(max.) is 20V AC; 20V AC < U < 79V AC for Undefined signal, 79V AC for Signal 1 (min.) Input Delay: 15ms typical for Signal 0 -> 1; Signal 1 -> 0 typically has a value of 30ms1.Maximum permissible leakage current: 1mA with 2-wire proximity switchMaximum cable length: 500m for shielded cables and 300m for unshielded cablesEach channel has 1 yellow LED that lights up when the input signal is high (signal 1).With terminal strip wiring, there are many types of terminal blocks to choose from, such as TA563-9, TA563-11, TA564-9, TA564-11, TA565-9, TA565-11, etcFollowing the environmental conditions in the AC500-eCo system data, the operating temperature range is typically 0°C to +60°C; Storage temperature range from -40°C to +70°C; Relative humidity of 0 to 95% RH and non-condensing

Number of input points: 16 digital input channels1.Input Voltage Type: AC, input voltage range from 100V AC to 240V AC1.Input current: Typically between 7mA (159V AC, 60Hz) per channel4.Input type: Type 14 according to EN 61131-2.Signal range: Signal 0(max.) is 20V AC; Undefined signal is 20V AC < U < 79V AC, and signal 1 (min.) is 79V AC4. Input Delay: 15ms typical for Signal 0 -> 1; Signal 1 -> 0 typically has a 30ms4.Isolation characteristics: Channels are galvanically isolated from the rest of the module, with 16 isolation groups of 1 channel each.Power Consumption: The current consumption from a 24V DC power supply is approximately 15mA.Connection Type: Pluggable.Degree of protection: IP204.Operating temperature: 0°C to +60°C; Storage temperature - 40 ° C to + 70 ° C.Humidity: 0 to 95% RH, non-condensing.Vibration resistance: 0.5g rms, 10 to 500Hz.Shock resistance: 15g, 11ms half sinusoid.Each channel has 1 yellow LED that lights up when the input signal is high (signal 1).

Number of output points: 8 digital output channels.Output Type: Relay output.Output Voltage:Maximum switching voltage: AC 250V or DC 30V.Rated operating voltage: AC 24V or DC 24V.Output Current:Current rating per point: AC 2A or DC 2A.Maximum current per point: AC 3A or DC 3A.Common Side Maximum Current: AC 8A or DC 8A.Power consumption: The current drawn from a 24V DC power supply is approximately 20mA.Operating temperature: -20°C to +60°C.Storage temperature: -40°C to +70°C.Relative humidity: 5% to 95%, non-condensing.Degree of protection: IP20.Switching frequency: typically between 1Hz and 10Hz, depending on the type and size of the load.Action time: The turn-on time and turn-off time are generally around 10ms to 20ms.Overload Protection: With overload protection function, when the output current exceeds the rated value, the protection mechanism will be triggered to prevent damage to the module and load.Short-circuit protection: It can withstand short-circuit conditions to a certain extent and avoid equipment damage caused by short-circuit, but continuous short-circuit may affect the life of the module.

Number of output points: 16 digital output channels, 3 transistor outputs.Output Voltage: Rated operating voltage is 24V DC3.Output Current: 0.5A maximum current per point, common side maximum current not mentionedPower Consumption: The current drawn from a 24V DC supply is approximately 10mA; The current consumption through the UP terminals is 20mA + 0.5A3 max per output.Isolation feature: Electrical isolation between the output group and the rest of the moduleOperating temperature: typically 0°C to +60°C; The storage temperature range is -40°C to +70°C.Relative humidity: 0 to 95% RH, non-condensing.Degree of protection: IP20.Installation position: Can be installed horizontally or vertically, natural convection cooling cannot be obstructed by cable trays or other components in the control cabinet3.Vibration resistance: 0.5g rms, 10 to 500Hz.Shock resistance: 15g, 11ms half sinusoid.

Number of output points: 16 digital output channels, 3 transistor outputs.Output Voltage: Rated operating voltage is 24V DC3.Output Current: 0.5A maximum current per point, common side maximum current not mentionedPower Consumption: The current drawn from a 24V DC supply is approximately 10mA; The current consumption through the UP terminals is 20mA + 0.5A3 max per output.Isolation feature: Electrical isolation between the output group and the rest of the moduleOperating temperature: typically 0°C to +60°C; The storage temperature range is -40°C to +70°C.Relative humidity: 0 to 95% RH, non-condensing.Degree of protection: IP20.Installation position: Can be installed horizontally or vertically, natural convection cooling cannot be obstructed by cable trays or other components in the control cabinet3.Vibration resistance: 0.5g rms, 10 to 500Hz.Shock resistance: 15g, 11ms half sinusoid.

Number of output points and type: 8 thyristor outputs: 245.Output current: 0.3A245 maximum per channel.Output Voltage: Typically operating voltage is 24V DC8.Power Consumption: The current consumption from a 24V DC power supply is approximately 30mA.Operating temperature: typically 0°C to +60°C; The storage temperature range is -40°C to +70°C.Relative humidity: 0 to 95% RH, non-condensing.Degree of protection: IP20.Isolation feature: Electrical isolation between the output group and the rest of the module.Vibration resistance: 0.5g rms, 10 to 500Hz.Shock resistance: 15g, 11ms half sinusoid.

The DO573 is a digital output module from ABB's AC500-eCo seriesNumber of output points and type: 8 normally open relay output channels 4.Output Voltage: Rated at 24V DC or 120/240V AC.Output current: 2A4 maximum per point.Power consumption: If it is AC power supply, the voltage range is between 100VAC~260V, and the current consumption is about 30mA; If it is DC power supply, the supply voltage range is 18~28V, and the typical current value is 50mA at 24VOperating temperature: typically -40°C to +70°C.Relative humidity: It has good resistance in high humidity environment.Ingress Protection: Not explicitly mentioned, but generally has some protection against dust, solid foreign objects, and splashes, and may be IP20 or similarIsolation feature: Electrical isolation between the output group and the rest of the module.Anti-vibration: It has a certain anti-vibration ability and can work stably in a vibration environment, and the specific value is not clearly given.Shock resistance: Able to withstand a certain amount of impact to ensure that there will be no failure or damage when subjected to impact, the specific value is not clearly given.

Number of input points and type: 8 digital input points, which can be used as source or drain inputs, and the input voltage type is DC.Input Current: 5mA typical.Maximum input voltage: 0-30V.Delay time: 8ms typical.Number and type of output points: 8 transistor output points.Output voltage type: DC.Output voltage: 24V.Output current: 0.5A max per point, 4A max for all channels combinedPower supply voltage: 20.4-28.8V DC.Power Consumption: The current drawn from a 24V DC power supply is approximately 10mA.Operating temperature: 0-+60°C.Storage temperature: -40-+70°C.Degree of protection: IP20.

Number of input points and type: 8 digital input points, which can be used as source or drain inputs, and the input voltage type is DC.Input Current: 5mA typical.Maximum input voltage: 0-30V.Delay time: 8ms typical.Number and type of output points: 8 relay output points5.Output Voltage: Rated at 24V DC or 120/240V AC.Output current: 2A5 maximum per pointPower supply voltage: 20.4-28.8V DC.Power Consumption: The current drawn from a 24V DC power supply is approximately 10mA.Operating temperature: 0-+60°C.Storage temperature: -40-+70°C.Degree of protection: IP20.

The MC5102 is a memory card for ABB's AC500 series PLCsMemory capacity: 8GB.Memory type: Flash EEPROM, non-volatile, data is not lost after a power failure, and user programs and data can be reliably stored for long periods of time.IP20 protection level for a certain degree of protection against dust and foreign objects.

The TA564-9 is a terminal block product from ABBDegree of protection: IP20Wiring relatedNumber of digits: 9 digitsWiring: Front-end screws, front-end wiringPitch: 5.0mm

The TA565-9 is an I/O terminal blockSupply Voltage: Typically integrated in an AC500 system, powered with the system, typically 24VDC.Connection type: I/O terminal adapter for AC500 PLC systems to enable the connection between field devices and PLCs.Wiring: Spring-loaded front-end wiring, cable access from the front-end.Mounting: Can be mounted on a DIN rail.Number of digits: 9 digits.Operating temperature range: -25°C to +70°C.Certification standards: Comply with standards such as CE, UL and CSA.

The TA564-11 is an accessory for ABB's I/O module and is a PCB terminal blockNumber of digits: 11 digitsWiring: Front-end screws, front-end wiringDegree of protection: IP20

The TA565-11 is ABB's I/O terminal blockSupply voltage: 24VDCConnection type: I/O terminal adapter for AC500 PLC systems to enable the connection between field devices and PLCs.Wiring: There are two options: screws and springs2.Number of digits: 11 digits.Mounting: Can be mounted on a DIN rail.Operating temperature range: -25°C to +70°C for the same series.Certification standards: CE and other standards

Number of input points: 4 numeric input points.Input voltage: Typically 24V DC.Input Current: The typical input current is low, generally in the milliampere level, and the typical input current at each input point is about 3mA.Input Delay: The input signal has a short delay time, usually in the microsecond range, typically around 200μs, which can quickly respond to changes in the input signal.Bus interface: The I/O bus interface of the AC500 series is used to carry out high-speed data transmission and communication with the main controller to ensure the stable connection and data interaction between the module and the system.The electrical isolation technology is used between the input channel and the internal circuit, and the isolation voltage can generally reach 1500V AC, which effectively prevents the influence of external interference signals on the internal circuit of the module and improves the stability and reliability of the system.Operating temperature: Usually it can work well in the range of -25°C to +60°C, in some special requirements of the environment, there may be a wider or narrower temperature range.Relative humidity: Generally within the range of 5% to 95% relative humidity, but condensation is not allowed.Degree of protection: Generally IP20, it can meet the protection requirements of most industrial sites, but additional protection measures may be required in harsh environments.The module is designed for ABB AC500 series PLCs and has good compatibility with other modules and master controllers of the AC500 series, making it easy to form a complete automation control system.

TA563-9: Analog Input ModuleStructure: modularInstallation: On-site installationLD Instruction Processor: Hard PLCI/O points: 16DIFunction: Analog input module, 4AIU/IResolution: 12-bitOperating voltage: 24VDCOutput frequency: 50HzProcessing speed: 5μs

Number of output points: 4 digital output points1.Output type: Usually transistor output, can be switched on and off quickly, suitable for applications that require high-frequency output.Output Voltage: The operating voltage range is generally 12V to 220V1.Output current: The output current of each output point can generally reach about 0.5A, which can directly drive small loads, such as relays, indicator lights, etc.Bus interface: The I/O bus interface of the AC500 series ensures high-speed and stable data transmission and communication with the main controller.The electrical isolation technology is used between the output channel and the internal circuit, and the isolation voltage can generally reach 1500V AC, which effectively prevents the influence of external interference signals on the internal circuit of the module and improves the stability and reliability of the system.Operating Temperature: Typically works in the range of -25°C to +60°C.Relative humidity: Generally within the range of 5% to 95% relative humidity, but condensation is not allowed.Degree of protection: Generally IP20, it can meet the protection requirements of most industrial sites, but additional protection measures may be required in harsh environments.It has an output status indicator, which can intuitively display the current status of each output point, which is convenient for on-site debugging and troubleshooting.It supports online diagnosis function, which can monitor the working status of the output channel in real time, and timely find and report fault conditions such as abnormal output signals, short circuits, and open circuits.The module is designed for ABB AC500 series PLCs and has good compatibility with other modules and master controllers of the AC500 series, making it easy to form a complete automation control system.

The TA5131-RTC is a real-time clock palette for ABB's AC500-eCo V3 series, which provides accurate real-time clock functionality for PLC systems, ensuring that the system can accurately record time and perform time-related control operations during operation.Operating voltage: Usually the connected CPU module provides a 5V DC power supply, and its working current consumption is small, generally within tens of milliamps, which will not cause a large burden on the power supply of the CPU.Operating temperature: standard temperature range of 0°C to +55°C when installed horizontally; The wide temperature range is -20°C to +70°C, and the I/O is derated by 75% at 60°C to 70°C. The standard temperature range is 0°C to +40°C when installed vertically; Wide temperature range from -20°C to +40°C.Storage temperature: -40°C to +70°C.Relative humidity: 95% max, non-condensing.With high time accuracy, the accuracy of the internal clock crystal oscillator is usually about ±5ppm, which can meet the time accuracy requirements of most industrial control occasions, such as timing control, time stamping of data recording and other applications.Specially designed for the CPU modules of the ABB AC500-eCo V3 series, it has good compatibility and communication capabilities with CPU modules such as the PM5072-T-2ETH (W) of the series, and can be easily installed on the CPU module and interact with data.The small size and light weight make it easy to install on the CPU module and will not take up too much space and increase the weight burden of the system, but the specific value has not been officially given in detail.

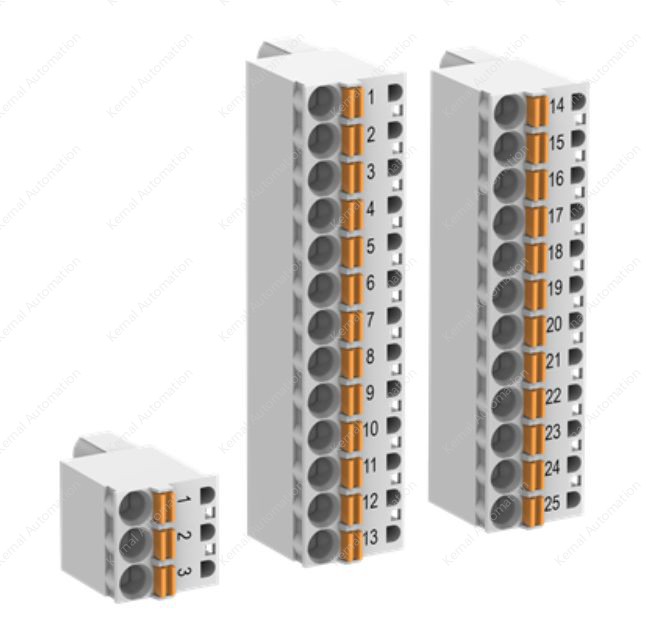

Power Terminal Block: Provides power to the AC500-eCo V3 processor module, type removable 3-pin terminal block, spring front/cable side, 5.00mm pitch, 0.5mm² to 2.5mm² for solid and flexible copper conductors, 11mm stripping length.I/O Terminal Block: Includes 2 removable I/O connectors, both spring-front/cable side, 5.00mm pitch.IP20 protection level for a certain degree of protection against dust and foreign objects.

Digital inputs: There are typically 8 to 16 digital input channels that can receive switching signals from sensors, switches, and other devices, typically in the voltage range of 12V to 24V DC.Analog input: Usually equipped with 4 to 8 analog input channels, it can receive standard analog signals such as 0V to 10V and 4mA to 20mA, which are used to collect continuous measurement values of sensors, such as temperature, pressure, flow and other physical quantities.Digital output: There are generally 8 to 16 digital output channels, which can output switching signals for controlling relays, contactors, solenoid valves and other equipment, the voltage range of the output signal is usually 24V DC, and the output current is generally between 0.5A and 2A, which can directly drive small loads.Analog output: There are usually 2 to 4 analog output channels, which can output standard analog signals such as 0V to 10V, 4mA to 20mA, etc., which are used to control the operating parameters of equipment such as control valves, frequency converters, etc.Ethernet interface: It supports standard Ethernet communication protocols, such as TCP/IP, UDP, etc., and the communication rate is generally 10/100Mbps self-adaptive, which can easily communicate with the host computer, other PLC or industrial Ethernet equipment.Serial communication interface: Usually equipped with RS232 or RS485 serial communication interface, it can be used to connect with some traditional devices or devices that adopt serial communication protocols, such as smart meters, frequency converters, etc., and the communication baud rate can be set between 9600bps and 115200bps.Program storage capacity: Generally, there are about 512KB to 2MB program storage capacity, which can meet the medium-scale control program writing and storage needs.Instruction execution speed: The execution time of a single instruction is usually between 0.1μs and 0.5μs, which can quickly process various logical operations and control tasks to ensure the real-time and responsiveness of the system.Operating temperature: Generally can work normally in the ambient temperature range of -20°C to 60°C, some special models can adapt to a wider temperature range.Humidity: Relative humidity between 5% and 95%, non-condensing.Ingress Protection: Usually IP20 compliant, it provides a certain degree of protection against dust and foreign objects.

The TA563-11 is ABB's PLC module terminal blockNumber of digits: 11 digitsWiring: Front-end screw wiring or front-end spring wiring, side wiring or front-end wiringApplicable scenario: It is suitable for connecting AC500 (-eCo) series I/O modules and other related equipment to achieve signal transmission and electrical connectionConductor cross-sectional area: solid 0.5mm²-2.5mm², flexible 0.5mm²-2.5mm², flexible wire with or without plastic sleeve min. 0.25mm², max. 1.5mm²Tightening torque: 0.4N・m-0.5N・mDegree of protection: IP20

Model: TA5212-TSCLProduct description: AC500-eCo V3 Screw terminal block set, screw front, cable side, 5.00mm pitch, suitable for PM503X, PM505X and PM507X.Power Terminal Block:Type: Removable 3-pin terminal block, screw front/cable side, 5.00mm pitch.Purpose: To provide power to the AC500-eCo V3 processor module.Conductor cross-sections: 0.5mm² to 2.5mm² for both solid and flexible copper conductors.Stripping length: 7mmTightening torque: 0.5 NmI/O Terminal Blocks: Includes 1 removable 13-pin terminal block and 1 removable 12-pin terminal block, both screw front/cable side connectors, 5.00mm pitch.IP20 protection level for a certain degree of protection against dust and foreign objects
